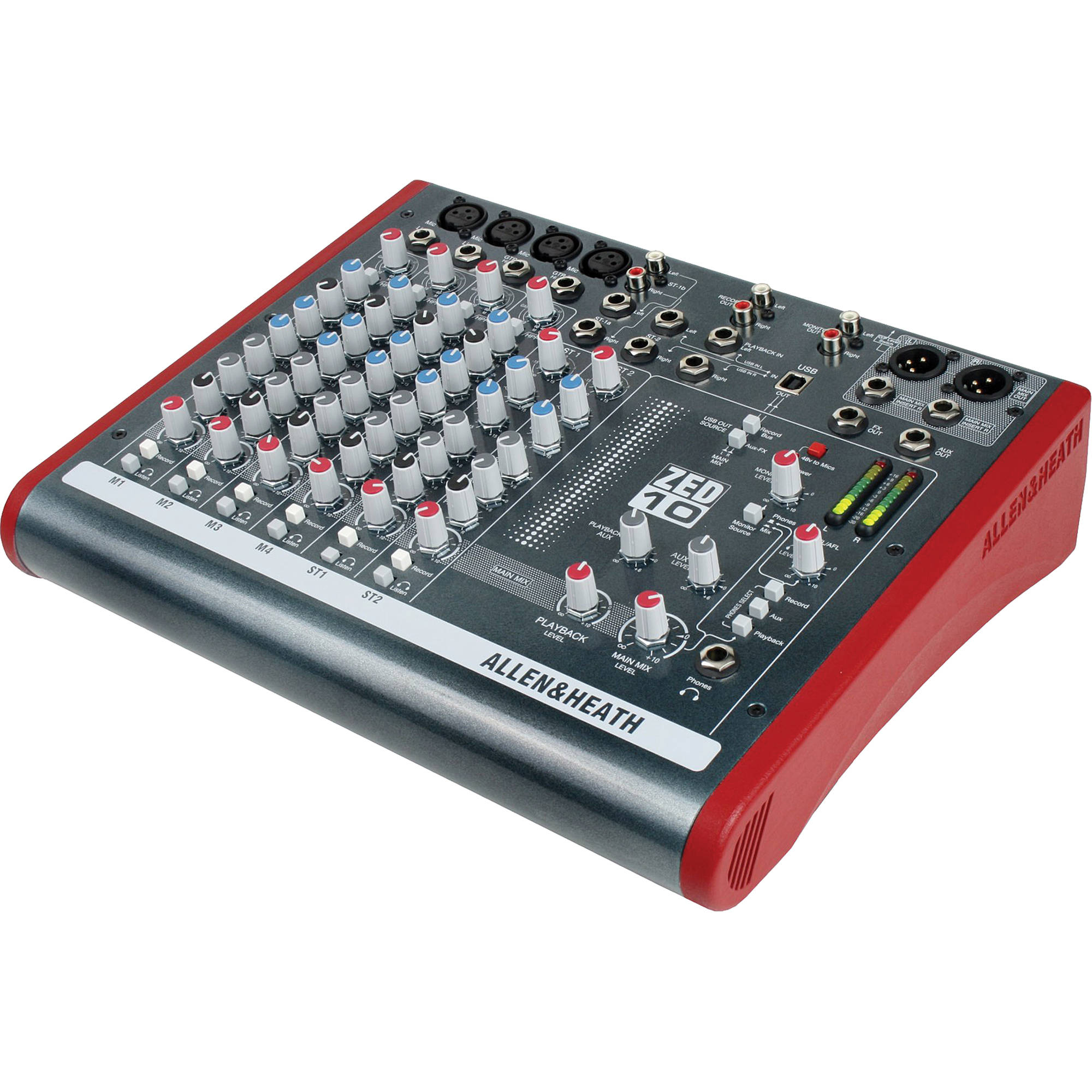

Allen & Heath ZED-10 Overview1Description2Key Features3Output & Send Options4Return OptionsLearn How to Record Audio for Video and FilmRead MoreUsing the ZED-10 and ZED-10FX with AmpliTube X-GEAR Plug-inThe multipurpose Allen & Heath ZED-10 mixer combines four mic/line inputs, two Hi-Z guitar inputs, two stereo inputs for effect returns and portable music players or keyboards, and a USB digital audio interface compatible with Mac and Windows computers¡ªin a compact and portable package small enough for carrying to your gig, whether recording live or in the studio. It is also an excellent choice for small PA and AV rentals, and for installation in hotels, small churches, and schools.Channels 1 through 4 feature XLR mic inputs and low-noise preamps with 60 dB of gain. Channels 1 & 2 also offer balanced/unbalanced line inputs while 3 & 4 feature Hi-Z inputs with Class-A FET circuits and 26 dB boost switches, designed to add tube-like warmth to your guitar and other instruments. All four mono channels are equipped with responsive, 3-band swept-mid EQs, which utilize MusiQ technology to optimize the Q factor according to the amount of boost or attenuation.The ZED-10 offers a set of FX and aux sends, 48V microphone phantom power, XLR main stereo outputs with inserts, a comprehensive monitoring section with a headphone output, and a separate monitor speaker output.Key FeaturesPortable mixer for small band mixing live or in the studioFour mic/line inputs, two with Class-A FET high-impedance preampsTwo Hi-Z guitar/instrument inputs with boost switch and tube-like warmthXLR L/R main stereo outputs with insertsUSB digital audio interface for recording to Mac or Windows computerUse USB with FX loop?to access effect plug-ins running on a computer?Flexible monitoring section with headphone and speaker feed outputsNeutrik XLR and 1/4″ connectorsResponsive 3-band, swept-mid EQ with MusiQ technologyAux and FX sendsSeparately switched stereo busSound image pansIlluminated PFL indicatorStereo returns & playbackAll inputs with level control knobHeadphones output12-bar metersTwo stereo inputs with MP3-player compatibilitySeparate 2-track record outputsStereo playback input for 2-track replayStereo monitor outs48V microphone phantom powerDI level switching for sub mixingOutput & Send OptionsMain mix (L/R)¡ªpost-master LevelAux + FX bus¡ªaux is a pre-fade send, FX is a post-fade sendRecord Bus (L/R)¡ªseparate stereo bus to main mixReturn OptionsStereo Input 1 (RCA & 1/4″)Stereo Input 2 / Playback Input (USB & 1/4″)In the BoxAllen & Heath ZED-10 Multipurpose Mini MixerPower CordLimited 1-Year WarrantyUser Manual4.1 MBTable of ContentsDescriptionKey FeaturesOutput & Send OptionsReturn OptionsAllen & Heath ZED-10 SpecsMixerNumber of Analog Input Channels10Number of Mic Preamps4Analog Output Channels1 x Stereo Master Output1 x Stereo Control Room/Monitor Output1 x Stereo Tape/Record Output1 x Mono Aux Send Output1 x Mono FX Send Output1 x Stereo Headphone OutputSignal ProcessingBuilt-In EffectsNoneDigital AudioSample Rates32 / 44.1 / 48 kHzBit Depth16-BitPerformanceHeadroom+21 dBFrequency ResponseLine Input to Main Output:10 Hz to 25 kHz +0.5/-1 dB (Unity Gain) Mic Input to Main Output:10 Hz to 30 kHz +0.5/-1 dB (30 dB Gain) Stereo Input to Main Output:10 Hz to 30 kHz +0.5/-1 dB Max Input LevelXLR Input:+11 dBu (Mono) 1/4″ Line Input:+31 dBu (Mono) 1/4″ / RCA Input:+15 dB (Stereo) Output LevelXLR Main Output:0 dBu (Nominal) +21 dBu at Max Gain 1/4″ Aux/FX Output:0 dBu (Nominal) +21 dBu at Max Gain Tape/Record/Monitor Output:0 dBu (Nominal) +21 dBu at Max Gain EIN-127 dBu at Max Gain (150-Ohm Input)Noise FloorMain Output:-96 dBu (Master Level at Unity, Channel Levels at -¡Þ, 22 Hz to 22 kHz) THD+NHi-Z Input to Main Output:0.015% at Unity Gain Line Input to Main Output:0.003% at Unity Gain Mic Input to Main Output:0.002% at +10 dB Gain (1 kHz) 0.01% at +30 dB Gain (1 kHz) Stereo Line Input to Main Output:0.002% at Unity Gain (1 kHz) ConnectivityAnalog Inputs2 x 1/4″ TRS Balanced/Unbalanced Line Input4 x 1/4″ TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)1 x Stereo RCA Unbalanced Line Input2 x 1/4″ TRS Main Insert2 x 1/4″ TS Hi-Z Input4 x XLR 3-Pin Balanced Mic InputAnalog Outputs1 x 1/4″ FX Send (Post-Fader)1 x 1/4″ Aux Send (Pre-Fader)1 x 1/4″ TRS Headphone Output1 x Stereo RCA Monitor Output1 x Stereo RCA Tape Output2 x XLR 3-Pin Balanced Main OutputPhantom Power+48 VUSB1 x USB Type-B (USB 1.1, I/O)USB I/O Capacity2 x Input / 2 x OutputPhysicalRack MountableNoDimensions13.2 x 3.7 x 10.8″ / 336 x 95 x 275?mmWeight7?lb / 3.2?kgPackaging InfoPackage Weight10 lbBox Dimensions (LxWxH)15.7 x 12.3 x 5.9″Allen & Heath ZED-10 Reviewssolid board for webcastingBy MichaelRated 5 out of 5Date: 2020-02-23I really like the separate phones/recording mute buttons. Really great for virtual podcasts/webcasts. Wish you could send independent channels through the USB interface instead of just left and right, but ultimately good enough for what I use it for.Use of ZED 10 Audio MixerBy xtreamingingliveRated 5 out of 5Date: 2014-07-25Perfect amount of technology without being overall complicatedWas not satisfied with performanceBy AnonymousRated 1 out of 5Date: 2013-11-27The primary reason I purchased this was for practicing my guitar and learning songs through it with high quality in ear monitors. To my disappointment my in ears didn’t sound nearly as good plugged into this product as they had when plugged into a cheaper console made by Peavey. The Allen and Heath console did not supply adequate power to the headphone jack and was easily distorted. I was impressed with the EQ performance but could not get around the poor headphone out performance.ZED-10 Multi-Purpose Miniature MixerBy LatinskilzRated 5 out of 5Date: 2013-10-01I do home studio mixing and this unit is very nice looking and performs smoothly.Very economical, phenomenal soundBy RussellRated 5 out of 5Date: 2013-01-31I bought the ZED-10 because I wanted to replace one that I went in halfsies on, and I want this one 100% all to myself! My application is outdoor event sound, specifically at our annual pumpkin patch and Christmas tree lot, which is like a little fair with rides and entertainment. I paired the ZED-10 up with 4 QSC K-8 self powered speakers wired in a daisy chain. I got phenomenal sound in our sales area, which contributes to the happy, upbeat ambiance that we work very hard to create. We had no troubles with the ZED-10 for 3 months of daily outdoor use, and many of our customers complimented us on the sound quality.Nice and up to dateBy COZ (VOICE)Rated 5 out of 5Date: 2013-01-22Nice to have the USB option. It will work on a MAC with USB 2 or 3. Just plug and play. This is a great board. Excellent build.Great little mixerBy MichelleRated 4 out of 5Date: 2018-07-31We use this for demo’ing microphones and it’s pre-amp is nice a quiet. My only complaint is that it’s “zero” values are all in different locations, so setting everything flat takes a little more effort.great little combo when out to a small gigBy RonaldRated 5 out of 5Date: 2017-07-14bag has room for a laptop pc or other stuff…A&H stuff is just great!See any errors on this page? Let us knowYOUR RECENTLY VIEWED ITEMS
