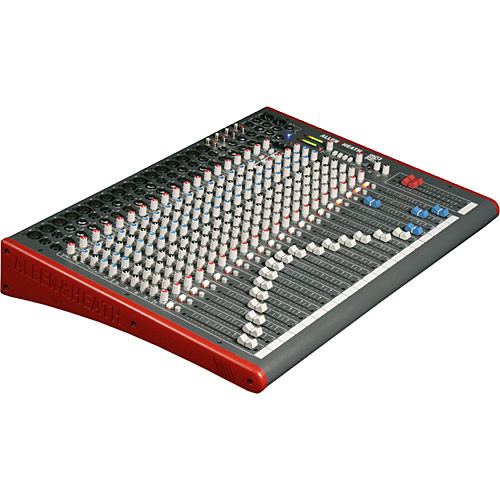

Allen & Heath ZED-24 Overview1Description216 Mono Inputs3Four Stereo Inputs4Flexible EQ Section5Inserts6Independent Aux Sends7USB Connection8Flexible OutputsThe Allen & Heath ZED-24 is a small-format, 24-channel analog mixer offering versatile I/O and a user-friendly workflow for use in home and project studio recording, houses of worship, and live sound reinforcement. The 16 mono channels feature Neutrik XLR mic and 1/4″ line inputs, DuoPre preamps with phantom power and bountiful gain, 1/4″ insert points, and 3-band EQ, while the four stereo channels have 1/4″ inputs and 2-band EQ. All channels are equipped with long-throw 100mm faders, solo and mute buttons, and independent aux send knobs. The four aux sends are ideal for routing to floor monitors and outboard time-based effects. A USB 1.1 port delivers 2-channel send and return capabilities via a Mac or Windows computer. There are stereo and mono main outputs in addition to alt and headphone outputs, and dual 12-segment LED meters that clearly indicate your master output level. Patch additional stereo sources into the RCA stereo return and 2-track inputs, then route them to the stereo bus, or mix them into the stereo channels. The stereo RCA output is handy for recording your mix to an external device such as a cassette deck or computer soundcard.16 Mono InputsThere are 16 mono input channels with Neutrik connectors¡ªXLR for balanced mic signals, and 1/4″ for balanced/unbalanced line-level sourcesFour Stereo InputsThe four stereo input channels feature 1/4″ connectors to accommodate stereo devices such as keyboards, synth modules, and external effects processorsFlexible EQ SectionAll mono channels feature 3-band EQ with sweepable midrange, while the stereo channels offer 2-band EQInsertsInserts on all mono channels and the stereo output provide easy integration of analog outboard gear such as hardware compressors and equalizersIndependent Aux SendsFour mono aux sends with independent level controls allow versatile signal routing to floor monitors and external effects processorsUSB ConnectionA USB 1.1 port allows direct connection to Mac and Windows computers for stereo audio I/OFlexible OutputsThe ZED-24 offers balanced XLR stereo main outputs, a 1/4″ mono main output, 1/4″ and 3.5mm stereo headphone outputs, and a source-selectable stereo alt outputIn the BoxAllen & Heath ZED-24 Small-Format 24-Channel Analog Mixer with USB ConnectionUSB CablePower CableLimited 1-Year WarrantyGuides & ManualsTable of ContentsDescription16 Mono InputsFour Stereo InputsFlexible EQ SectionInsertsIndependent Aux SendsUSB ConnectionFlexible OutputsAllen & Heath ZED-24 SpecsTotal # Of Inputs24Mic/Line Inputs16 x 3-Pin XLR Female Mic Inputs (Balanced) 16 x 1/4″ TRS Line Inputs (Balanced/Unbalanced)Stereo Line Inputs8 x 1/4″ TRS Line Inputs (Four Stereo Pairs, Balanced/Unbalanced)In-Line Inputs/ReturnsNoAux Sends4 x 1/4″ TRS Mono (Balanced)Aux Returns2 x RCA Coaxial Line Inputs (One Stereo Pair, Unbalanced)Inserts16 x 1/4″ TRS on Mono Channels (Unbalanced) 2 x 1/4″ TRS on Stereo Bus (Unbalanced)BUS (Group) OutputsNoMain Outputs2 x 3-Pin XLR Male (One Stereo Pair, Balanced) 1 x 1/4″ TRS Mono (Balanced)Monitor Outputs2 x RCA Coaxial Alt Outputs (One Stereo Pair, Unbalanced) 1 x 1/4″ TRS Stereo Headphone Output (Unbalanced) 1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output (Unbalanced)2-Track I/O2 x RCA Coaxial 2-Track Input (One Stereo Pair, Unbalanced) 2 x RCA Coaxial 2-Track Output (One Stereo Pair, Unbalanced)ALT I/O1 x USB Type-B (2-Channel Send/Return)EQ SectionHigh (All Channels): ¡À15 dB at 12 kHz Mid (Mono Channels): ¡À15 dB at Selectable Frequency (120 Hz to 4 kHz, Sweepable) Low (All Channels): ¡À15 dB at 80 HzHigh-Pass Filter12 dB/Octave at 100 Hz, SwitchableSolo/MuteMute and PFL SoloChannel Level Control100 mm FaderTrim/Gain ControlRotary ControlGain RangeMic Inputs: -6 to +63 dB Line Inputs: -10 to +26 dB Stereo Inputs: -¡Þ to +10 dB Faders: -¡Þ to +10 dB Returns: -¡Þ to +10 dB Aux Masters: -¡Þ to +6 dB Alt Out: -¡Þ to +6 dBPhantom Power+48 VDC, Globally SelectableMeteringDual 12-Segment LEDs Peak LED per ChannelUSB SpecificationUSB 1.1 CompliantBit DepthUSB: 16-BitSample RatesUSB: 32 kHz, 44.1 kHz, or 48 kHzNominal Input LevelMic Input: -63 to +6 dBu Mono Line Input: -26 to +10 dBu Stereo Line Input: 0 dBu (+10 dB with Control Off) Insert Point: 0 dBuMaximum Input LevelMic Input: +17 dBu Mono Line Input: +30 dBu Insert Point: +21 dBuNominal Output Level0 dBuMaximum Output Level+21 dBuFrequency ResponseMic In to Main Out (30 dB Gain): 20 Hz to 20 kHz (+0.5 dB, -1 dB) Line In to Main Out (0 dB Gain): 10 Hz to 30 kHz (+0.5 dB, -1 dB) Stereo In to Main Out: 10 Hz to 30 kHz (+0.5 dB, -1 dB)THD + NMic In to Main Out (0 dB Gain, 1 kHz, +10 dBu Out): 0.004% Mic In to Main Out (30 dB Gain, 1 kHz): 0.014% Line In to Main Out (0 dB Gain, 1 kHz, 0 dBu): 0.005% Stereo In to Main Out (0 dB Gain, 1 kHz, +10 dBu): 0.003%HeadroomAnalog Headroom from Nominal (0 VU): 21 dB USB In and Out Headroom from Nominal (0 VU): 14 dBNoiseMic Pre EIN: -127 dBu (Maximum Gain, 150-Ohm Input, 22 Hz to 22 kHz) Main Out: -84 dBu (L/R Faders at 0, 22 Hz to 22 kHz)Power Consumption40 W MaximumPower Requirements100 to 240 VAC, 47 to 63 HzDimensions25.4 x 3.9 x 18.3″ / 64.5 x 9.8 x 46.5 cmWeight23.1 lb / 10.5 kgPackaging InfoPackage Weight27.3 lbBox Dimensions (LxWxH)31 x 25 x 10″Allen & Heath ZED-24
