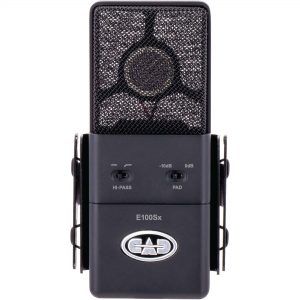

The CAD E100Sx is a versatile microphone with a large-diaphragm condenser element that can be used to record a wide variety of sources including vocals, percussion, and acoustic instruments. This fourth-generation version of the E100 features a narrow supercardioid pickup pattern that focuses audio capture tightly in front of the mic, helping to reject unwanted background sounds and making it well suited to studio, voice-over, and podcasting applications.The mic’s sensitive 1″ nickle-plated diaphragm has been engineered to provide accurate phasing for a full, rich vocal sound with a hint of vintage coloration and extended low-end response. An optional 100 Hz high-pass filter with a 6 dB per octave slope can be engaged to filter out those low frequencies, if you prefer. The E100Sx offers a 10 dB pad switch for use on louder audio sources, allowing the mic to handle up to 136 dB SPL.The included shockmount offers a low-profile appearance and absorbs vibrations to reduce rumbling noise, helping the sensitive, low-noise capsule to deliver detailed, nuanced recordings. A 48V phantom power source is required to power the condenser microphone element.WhatsApp:+8615989288128 , UNCUCO Radio / TV Studio Equipment. , 631922109351
CAD E100SX SpecsMicrophonePrimary ApplicationsStudio Recording, PodcastForm FactorLarge Diaphragm Mic / Stand/Boom MountIntended Sound SourcesVocals, Speech/Voice Over, InstrumentSound FieldMonoCapsule1 x CondenserDiaphragm1″ / 25.4?mm (Condenser)Polar PatternSupercardioidOrientationSide AddressCircuitrySolid-StatePad-10 dBHigh-Pass Filter100 Hz, 6 dB/Octave Tone AdjustmentNoneGain AdjustmentNoneOn-Board ControlsHigh-Pass Filter, PadPerformanceFrequency Range20 Hz to 18 kHz Maximum SPL136 dB SPLImpedance150 OhmsSensitivity-32 dBVEquivalent Noise Level9.5 dB A-WeightedConnectivityOutput Connectors (Analog)1 x XLR 3-Pin Male (on Mic)Headphone ConnectorNonePowerOperating Voltage48 V (Phantom Power)Operating Current Consumption1.6 mA (Phantom Power)PhysicalMountingShockmount (with Included Hardware)Included CaseNoneIncluded FiltersNoneCertificationsRoHS, as per ManufacturerDimensionsH: 6.1 x W: 2.9 x L: 5.44″ / H: 15.4 x W: 7.37 x L: 13.81?cm (Microphone, with Mount)Weight1.98?lb / 0.9?kgPackaging InfoPackage Weight2.05 lbBox Dimensions (LxWxH)7.6 x 5.2 x 4.8″S
