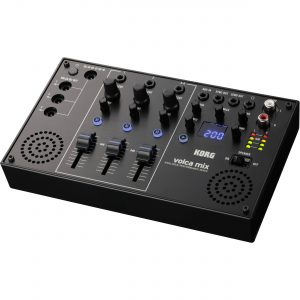

Korg Volca Mix OverviewNAMM 2018: Korg Volca Mix and Konnect PA New at UNCUCORead MoreThe Korg Volca Mix is a four-channel analog mixer designed for a live performance setup combining multiple volca units. The mixer offers two mono channels, a stereo channel, plus aux send and return functions for incorporating external effects. Each channel offers a hi-/lo-cut filter allowing you to contour the sounds of each device to create a polished mix. Additionally, the unit offers master effects including an analog stereo width expander and an analog dynamic range compressor with sidechain capabilities.
Inputs and outputs are made via 1/8″ connectors including a dedicated headphone output and a sync output, which allows the volca mix to be used as a master sync generator to the connected volcas in the setup. A built-in stereo speaker is provided for portable performances. The volca mix can power up to three volca units and ships with a power supply, three audio cables, and three DC-to-DC volca power cables.Compact multi-function, four-channel mixerVolume faders and lo-/hi-cut filter for professional-quality performancesOutput and monitor capabilities for use on stage, plus stereo speakers for maximum portabilityPowerful effects and controlMaster chain lets you control dynamicsSend out and auxiliary in for connecting external effectsSync function that can act as the master of a live setupUnlocks even more potential out of the volca seriesDC out can supply power for up to three volca unitsIncludes AC adapter, DC-to-DC cables, and audio cablesIn the BoxKorg Volca Mix – Analog Performance MixerPower Adapter3 x DC-to-DC Power Cables3 x Audio CablesLimited 1-Year WarrantyNews, Tips and ReviewsLearn How to Record Audio for Video and FilmExplora Admin 2 years agoUser Manual1.9 MBKorg Volca Mix SpecsMixerMixer Type: Four-channel analog mixer
Number of Channels: 2 x monaural, 1 x stereo
Monaural Output: volca keys, volca bass, volca beats, volca kick
Stereo Output volca: volca sample, volca fm
Channel Controls: Lo/Hi Cut, Send Level, Mute, Volume (available to boost +6 dB gain)
Bus: Four-channels analog mix bus, monaural mix send bus, stereo aux in/return bus
Master: VolumeMaster EffectsEffect Types:
Analog stereo width expander (width)
Analog dynamic range compressor (dynamics, speed)SyncPlay, tempoInputs and OutputsMixer Input: 3 x 1/8″ / 3.5 mm stereo mini jack, 0 dBu
Aux Input: 1 x 1/8″ / 3.5 mm stereo mini jack, 0 dBu
Send Out: 1 x 1/8″ / 3.5 mm stereo mini jack, 0 dBu
Sync Out: 1 x 1/8″ / 3.5 mm stereo mini jack, (Output Level: 5 V)
Audio Output:
Line Out: L/R, 2 x RCA, (maximum 11.1 dBu)
Headphone: 1 x 1/8″ / 3.5 mm stereo mini jack
Speaker: Built-in stereo speaker, on/offPowerPower: AC adapter (9 VDC)
Current Consumption: 300 mA
Output Power: 3 x volca DC out (connect with included DC-to-DC cable, up to 800 mA in total, 9 V)
?Dimensions7.6 x 4.5 x 1.7″ / 193.0 x 115.1 x 43.2 mmWeight12.3 oz / 350.0 gPackaging InfoPackage Weight1.825 lbBox Dimensions (LxWxH)12.15 x 6 x 2.75″Korg Volca Mix
