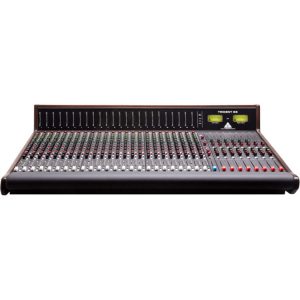

The 16-channel Series 68 Analog Recording Console with LED Meter Bridge from Trident Audio is a split/inline console with individual channels in 8-way panels. It offers the core feature set most often needed for analog recording applications and uses an 8 subgroup configuration and incorporates 6 Aux sends with routing options that are simple to use. All connections utilize easy-to-use DB25 connections with master and main outputs on XLR pairs.With a flexible yet powerful 3-band EQ at its core, including selectable channel inserts and monolithic preamps driving the inputs, the Series 68 console offers a wide array of summing and mixing options. The sonic quality and compact footprint of the 68’s can meet any demand.Furthermore, the Trident 68 input module is comprised of 8 equal input channel strips housed in a single metal front panel. Each channel provides flexible options for recording, mixing, and monitoring multitrack recordings. Each input module can easily be removed from the top side of the console for service and further signal routing options.Other features include the group section. 8 group channels are mounted on a single panel and each group strip controlling the associated group mix bus outputs. The groups can be used as audio subgroups for combining and processing a collection of input channels. Each group bus has its own balanced insert send/return and outputs that feed the associated DSUB connector on the rear master connector panel.The master section of the Trident 68 is laid out for ease of use and have all the necessary features to manage your monitors, talkback, and stereo returns. This master channel is independent from the rest of the console to ensure that your console’s master output functions can be easily and quickly serviced with little or no downtime.Finally, the Series 68 Analog Recording Console with LED Meter Bridge ships with a 2 RU rackmount power supply, which outputs DC power directly to the console for clean, quiet operation.Modularity ThroughoutThe 68 by design is manufactured to be a cost-effective variant of the fully modular 78. Incorporating a similar chassis design and the LED meter bridge, the 68 has a rugged and proven core. Using a semi-modular design, the 68 is able to effectively reduce its overall cost without a significant sacrifice to serviceability.All input channels are individual boards, faders included, each in an 8-channel packSubgroups are individual boards, faders, included, each in an 8-channel packMaster channel is an individual channel separated from all othersSplit/Inline ConsoleSince the inception of this configuration by Trident Audio on the A-Range console in the late 1960¡¯s it has been adopted throughout the industry and remains a standard configuration for our consoles today.Dual inputs to the channels with line and monitor inputs3-band EQ with sweeping midbands and selectable low- and high-bands<27 dB of headroomChannel insertsSelectable EQ pathMicrophone PreampThe 68 incorporates an updated high-quality wide-bandwidth preamp design. These preamps have plenty of headroom with very low noise, low distortion, a high slew rate, and high gain fully capable of driving ribbon microphones.65 dB gain preampBalanced inputsBalanced inserts with full bypassInput reverse switchMic/line switchPhantom power switchFlexible EQThe 68 incorporates an all-new 3-band EQ derived from the Series 80 Console EQ.??A 3-band Trident EQ with overlapping frequency range is provided along with a switchable high-pass filter. The high- and low-sections of the equalizer have a shelving response and the mid has a peaking (bell) response with two selectable bandwidth settings.Sweepable high band between 1 kHz and 15 kHzSweepable mid band between 200 Hz and 3 kHzSweepable low band between 40 Hz and 650 HzSelectable mid bandwidth between 1 and 1/3rd octave50 Hz high-pass filterSelectable channel insert?Master SectionThe master section of the 68 is laid out for ease of use and has all the necessary features to manage your monitors, talkback, and stereo returns. The 68¡¯s master channel is independent from the rest of the console to ensure that your console¡¯s master output functions can be easily and quickly serviced with little or no downtime.Main and alt monitor controlMute, dim, and mono controlsOnboard headphone output with gain8 subgroupsTwo 2-track returnsSubgroup monitor returnsOne stereo Aux8 stereo FX returns3.5mm TRS selectable inputOnboard talkbackSelectable insert return?In the BoxTrident Audio Series 68 Analog Recording Console with LED Meter Bridge (16 Channels)Power SupplyLimited 2-Year Warranty Extendable to 3 Years upon RegistrationUser Manual33.2 MBTable of ContentsDescriptionModularity ThroughoutSplit/Inline ConsoleMicrophone PreampFlexible EQMaster SectionTrident Audio Series 68 SpecsMixerNumber of Analog Input Channels16Number of Mic Preamps16Signal ProcessingBuilt-In EffectsNonePerformanceFrequency ResponseMic Input to Main Output:10 Hz to 55 kHz +0/-0.3 dB (6 to 60 dB Gain) Line Input to Main Output:100 Hz to 60 kHz +0/-0.3 dB (Unity Gain) Max Input LevelXLR Mic Input:+10 dBu at Min Gain (+10 dB) Line Input:+37 dBu at Min Gain (-15 dB) Monitor Return:+22 dBu Insert Return:+22 dBu Output LevelMix/Group/Aux/Monitor Output:+26.5 dBu at Max Gain (into 600 Ohms) Channel Send:+22 dBu at Max Gain (into 2 Kilohms) Direct Output:+22 dBu at Max Gain (into 2 Kilohms) I/O ImpedanceMic Input:> 2 Kilohms (Balanced) Line Input:> 10 Kilohms (Balanced) Output:< 50 Ohms < 100 Ohms CrosstalkAdjacent Channels:< -90 dB at 20 kHz < -110 dB at 1 kHz Channel Fader Off:< -100 dB (20 Hz to 20 kHz) Mix/Bus Assign:< -80 dB (20 Hz to 20 kHz) Aux to Aux:< -75 dB (20 Hz to 20 kHz) EIN< -128 dBu at +60 dB Gain (150-Ohm Input)Noise FloorBus Output:< -95 dBu (Master Level at -¡Þ) < -80 dBu (40 Inputs Continually Assigned) < -75 dBu (24 Inputs Routed Equiv. to 72 Inputs) THD+NMic Input to Output:< 0.003% (+15 dBu) Line Input to Output:< 0.003% (+15 dBu) ConnectivityAnalog InputsDB-25 Mic/Line InputAnalog Outputs2 x XLR 3-Pin Main Output (1 Stereo Pair)2 x XLR 3-Pin Monitor Output (1 Stereo Pair)DB-25 Mic/Line OutputPhysicalRack MountableNoDimensions33.4 x 28.8 x 12.3" / 84.8 x 73.0 x 31.2?cmTrident Audio Series 68 Contact UNCUCO WhatsApp: +8615989288128 Email:service@uncuco.com
Payment Method
We accept online payments via paypal, credit and debit cards. We also accept western union, money gram and bank transfer.
To order goods online and pay them via paypal, credit and debit cards, simply add your selected items to your basket, and proceed to the checkout, where you will be guided through the payment process.
Payment via PayPal:
1. You have your PayPal account, then choose the PayPal to complete the payment directly
2. If you want to use the PayPal payment, but you don’t have one PayPal account, please register one first.
Note: Choose the PayPal payment, you can choose your country currency, we accept all the currency.
Payment via Debit and Credit Card:
1. You click MasterCard, Visa Credit Card, American Express, Discover payment directly, you will be redirected to the PayPal website, then choose the payment method again, and fill in your card information to complete the payment.
2. You click the PayPal&Credit, you will be redirected to the PayPal website, the one is PayPal payment, the other one is Pay with Debit or Credit Card payment. Choose one to complete the payment.
Note: Your credit card will be charged upon placement of your order.
Payments via Western Union, Money Gram and Bank Transfer
If you would like to place your order, please contact us with the following information:
E-mail: service@uncuco.com
WhatsApp: +8615989288128
Your billing and delivery address.
Your full name, phone number and email address.
The list of items you'd like to purchase.
We will get back to you with a proforma invoice, and the directions for the final step to complete the direct deposit.
The payment needs to be verified by our in-house accounts department and goods will only be dispatched on their verification. Only once the funds have reflected in our bank account, will the goods be allowed to leave the store.
Please note that bank transfer transactions can take up to 4 business days to clear into our account. We will process your order as soon as your payment has cleared. To ensure a speedy turn around time, please notify us once you have made the deposit.
We offer cardholders the highest level of security in online shopping, irrespective of the type of card (credit or debit). All debit or credit card payments are processed via Activa System’s Secure Payment Gateway. All payment card information is entered exclusively on the bank’s 3D secure pages. We as the merchant do not store, have access to or sight of the payments card information. Should you select to pay with a payment card, you will therefore be redirected to secure pages administered by the Activa processing centre and a bank with which we have reached a card acceptance arrangement.
Verified by Visa & Mastercard
The Verified by Visa and MasterCard SecureCode trademarks displayed above allow each online purchase made with your payment card to receive additional protection via 3D Secure security protocols. 3D Secure is a unique service offered by MasterCard and Visa International that uses a One Time Pin (OTP) to protect a cardholder against unauthorized use of their card. Once activated, your card number cannot be used for online purchases at participating merchants without your One Time PIN (OTP). The OTP is sent to your cell phone during payment as the final step to complete the transaction.
SHIPPING AND DELIVERY
Shipping prices will be calculated at check-out, based on the weight of the goods, the country to which we are dispatching, and the shipping service you choose. If you place the order offline by email or phone, we will send you a proforma invoice including the shipping prices.
When will I receive my order?
The likely delivery timescale for orders will depend on the availability of the items you order, the delivery method you choose (where applicable) and the shipping destination country.
Delivery times can be calculated based on formula: Time to stock + 7days~15days ( The time shipping company needs deliver the products to address in your country)
Time to stock is the number of days we need to prepare your order for shipment or how long manufacturer or supplier needs to deliver the product to our warehouse.
Delivery tracking
We use DHL or Fedex or UPS or EMS express service for our deliveries. The tracking number will be sent to you by email as soon as we will ship the order. Please note that no information will be available for the tracking number until the shipping company has actually picked up the package. Please allow up to one business day for tracking information to become available. All deliveries require a signature.
Please note
We are only able to dispatch goods once payment has been received.
All orders are subject to approval by our verification department. We will notify you by phone or email should your order be delayed.
If, for any reason, we cannot supply a product you have ordered, we will contact you via email or phone and place your product/s on back-order once you have agreed you would like to wait. If you choose to put your order on back-order, we will provide you with personalized weekly updates and will notify you once your order has shipped. If one or more of your items is in stock and you are waiting on other item/s, you can have your order part shipped. A sales representative will keep you updated on the remaining portion of your order, and can provide tracking information for both shipments.
