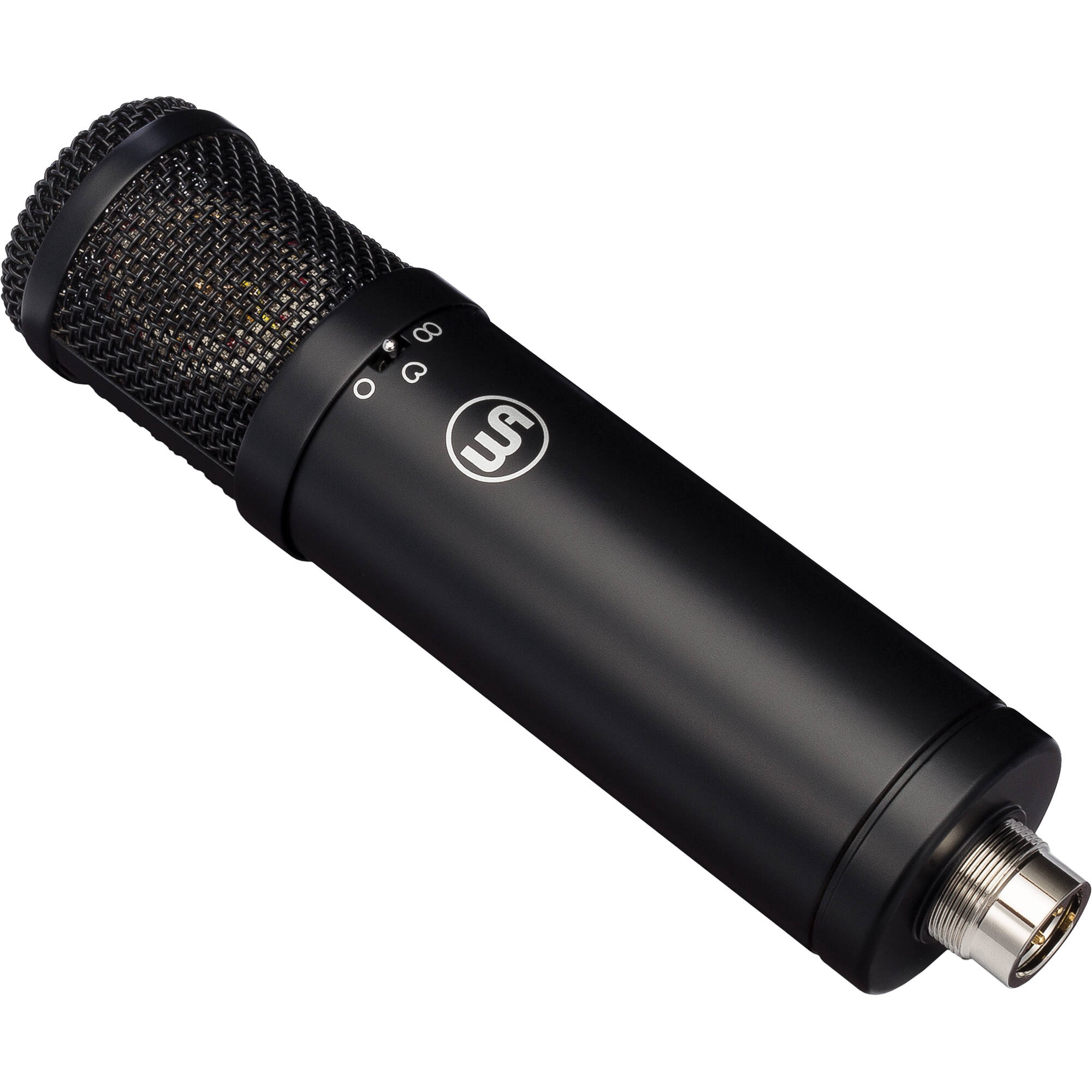

Offered here in a black finish, the Warm Audio WA-47jr is a large-diaphragm FET condenser microphone designed to provide the tonal characteristics of classic solid-state U47 microphones for vocalists, musicians, and recording engineers in home, project, and commercial recording studios. Thanks to three polar patterns¡ªcardioid, omnidirectional, and figure-8¡ªselectable from a switch on the front of the body, its versatility allows it to excel at anything from dry, close-up vocals to ambient room sounds. A -10 dB pad switch raises the maximum SPL from 147 dB to a high of 157 dB, enabling safe use when miking kick drums and cranked guitar and bass amps. Excessive low frequencies from proximity effect are easily reduced via the high-pass filter, which rolls off lows below 70 Hz.The K47-style capsule reproduction features dual gold-sputtered, 6-micron Mylar diaphragms with a single backplate. The fully discrete signal path includes Toshiba FETs, WIMA film capacitors, and Panasonic electrolytic capacitors to deliver the clean tone associated with transformerless microphones. With a gold-plated XLR 3-pin connector and operability via 48V phantom power, it is compatible with most mixing consoles and mic preamps. It comes with a vibration-reducing shockmount and a compact hardmount to allow flexibility in placement and positioning.Custom CapsuleThe WA-47jr utilizes a custom reproduction of the vintage K47-style capsule that was used in the classic U47 microphone¡ªdesigned with the same pattern and frequency response. Warm Audio’s version of this capsule (model WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer whose precision and consistency allows sonic replication of the most important piece of this classic style of microphone.Low NoiseThe WA-47jr’s discrete signal path pairs with the true U47-style capsule to obtain a very similar tone to the classic U47 microphone. The low self-noise of only 9 dBA enables pristine capture of quiet sound sources.Tone-Impacting ComponentsThe WA-47jr incorporates a modernized and simplified circuit design. Toshiba FETs, WIMA film capacitors, and Panasonic electrolytic capacitors contribute to the signature tone of the mic.Configuration FlexibilityThree polar patterns and a -10 dB pad enable versatility for close and distant positions and loud and quiet sources. The 70 Hz high-pass filter aids in reducing rumble, proximity effect, and excessive low frequencies.Features at a GlanceUpdated transformerless version of the highly coveted classic ’47 microphoneCustom-made Warm Audio K47-style 1.3″ capsule (model# WA-47-B-80v)Gold-sputtered, dual large diaphragms (6-micron Mylar) with a single backplateFully discrete signal path, Toshiba FETs, Wima film capacitors, and Panasonic electrolytic capacitorsCardioid, figure-8, and omnidirectional polar patterns70 Hz high-pass filter-10 dB padXLR 3-pin outputRequires 48V phantom powerIncludes shockmount, hardmount, and pouchWhatsApp:+8615989288128 , UNCUCO Radio / TV Studio Equipment. , 860191002197
Warm Audio WA-47JR SpecsMicrophonePrimary ApplicationsStudio RecordingForm FactorLarge Diaphragm Mic / Stand/Boom MountIntended Sound SourcesVocals, InstrumentSound FieldMonoOperating PrinciplePressure GradientCapsuleCondenserDiaphragm1.3″ / 34?mmPolar PatternCardioid, Figure-8, OmnidirectionalPattern SelectionSwitched (Adjustable on Mic)OrientationSide AddressCircuitrySolid-State (FET)Pad-10 dBHigh-Pass Filter70 Hz Tone AdjustmentNoneGain AdjustmentNoneIndicatorsNoneOn-Board ControlsHigh-Pass Filter, Pad, Polar PatternWindscreenNonePerformanceFrequency Range20 Hz to 20 kHz Maximum SPL147 dB SPL (1 kHz, .5% THD, 1-Kilohm Load)157 dB SPL (1 kHz, .5% THD, 1-Kilohm Load, with Pad)Impedance100 OhmsLoad Impedance¡Ý 1000 OhmsSensitivity-40 dBDynamic Range138 dB A-WeightedSignal-to-Noise Ratio85 dB A-WeightedEquivalent Noise Level9 dB A-WeightedConnectivityOutput Connectors (Analog)1 x XLR 3-Pin Male (on Mic)Headphone ConnectorNonePowerOperating Voltage48 V (Phantom Power)PhysicalColorNickelMountingMic Clip/Stand Adapter, Shockmount (Included)Mounting Thread Size5/8″-27 Female (3/8″-16 Female with Included Adapter)Included CaseZipper PouchIncluded FiltersNoneDimensions?: 2 x L: 8.3″ / ?: 5.2 x L: 21?cmWeight1.1?lb / 0.5?kgPackaging InfoPackage Weight3.83 lbBox Dimensions (LxWxH)11.15 x 10 x 6.2″S
