One stereo audio signal input, output after 4 distribution. All audio signal input and output adopt balanced XLR interface. All audio technical indicators reach broadcast level and CD sound quality.
Introduction:

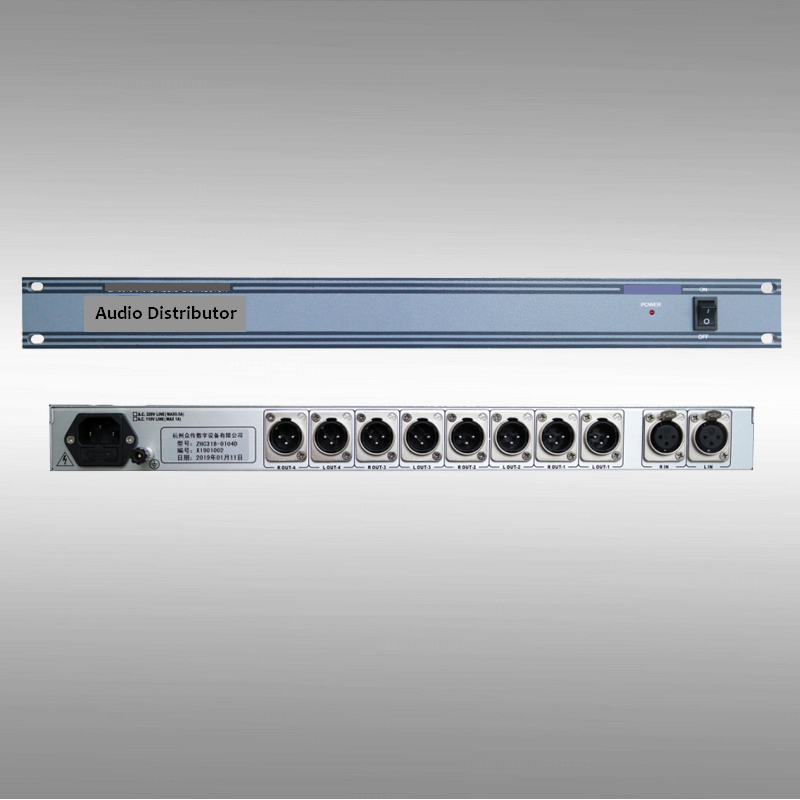

This analog audio distributor is an analog audio balanced input distribution into four analog balanced output device, this device is working as radio and television professional equipment, with input and output dynamic range, excellent audio indicators, small channel gain difference; high channel isolation, power through etc.
1. Technical Specifications:
1. Audio Input Level -30dBu ~ +15dBu
2. Audio Input Impendence 600Ω
3. Audio Output Impendence 600Ω
4. Audio Gain 0dB
5. Channel Isolation ≥ 85dB
6. Stereo Resolution ≥ 85dB
7. Stereo left/right level difference < 0.1dBu
8. Channel gain difference < 0.3dBu
9. SNR ≥ 85dB
10. Distortion ≤ 0.07%
11. Power Supply AC180V~AC260V 47Hz~63Hz
Note: Above Testing Range is 20Hz~20KHz.
2. Physical Specifications:
1.Rack Standard 1U (19-inch)
2.Operation Temperature 0℃ ~ +40℃
3. Relative Humidity <95%
4. Running Altitude ≤4500m
