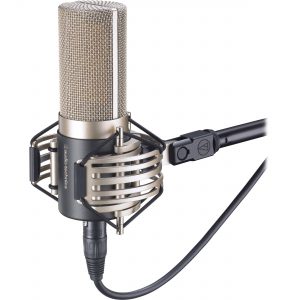

Product Demo 1Product Demo 2The AT5040 Cardioid Condenser Microphone by Audio-Technica is designed as a vocal microphone and features a smooth top end with controlled sibilance. It also offers fast transient response, making it suitable for acoustic instruments, such as piano, guitar, strings, and saxophone. The microphone employs a four-part rectangular element to provide purity of sound. Each of the four parts function together and provide a surface area twice the size of a standard 1.0″ circular diaphragm. There is an advanced internal shockmounting system, effectively decoupling the capsule from the housing for vibration-free performance. The microphone includes a shockmount for additional isolation. The AT5040 is hand assembled and inspected for quality control and is enclosed in an aluminum and brass housing for durability.Musical high-fidelity performance with realism, depth, presence, and purity of soundFour rectangular diaphragms function together as a large element, providing a combined surface area twice the size of a standard 1.0″ circular diaphragmLow noise and wide dynamic range suitable for studio vocalsDiscrete components for optimized capsule performanceHigh-SPL capability and extended frequency responseHand assembled and inspected for quality controlAdvanced internal shock mounting decouples the capsule from the microphone bodyDurable aluminum and brass housingIncluded custom AT8480 shockmount provides superior isolationHard-shell carrying case with die-cut foam compartments for protection during storage and transport
Audio-Technica AT5040 SpecsMicrophoneCapsuleCondenserPolar PatternCardioidPerformanceFrequency Range20 Hz to 20 kHz Maximum SPL142 dB SPLImpedance50 OhmsSensitivity56.2 mV/PaDynamic Range137 dBSignal-to-Noise Ratio89 dB Equivalent Noise Level5 dB THD1% ConnectivityOutput Connectors (Analog)1 x XLR 3-PinPowerOperating Voltage48 VOperating Current Consumption3.8 ¦ÌAPhysicalDimensions?: 2.24 x L: 6.51″ / ?: 57 x L: 165.3?mmWeight20.53?oz / 582?gPackaging InfoPackage Weight7.35 lbBox Dimensions (LxWxH)17.3 x 12.3 x 7.7″S
