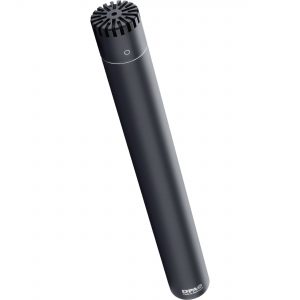

The 2006A Twin Diaphragm Omnidirectional Microphone from DPA features a modular capsule design and sonic character. It contains an omnidirectional condenser capsule suitable for capturing a wide variety of instruments, vocals, and similar sources in sound reinforcement and professional recording applications. The capsule’s twin diaphragm is designed to provide a fast impulse response and large frequency bandwidth, resulting in low inherent noise. The microphone’s output stage offers an MMP-A preamplifier for faithful recreations of the original source material, and its modular design allows users to manually switch optional capsules, providing enhanced versatility and performance. The package includes a microphone clip and windscreen.Modular flexibilityTwin-Diaphragm-Capsule technologyAcoustic authenticityLinear in a large frequency bandwidth
DPA Microphones 2006-A SpecsMicrophoneOperating PrinciplePressure OperatedCapsuleCondenser Polar PatternOmnidirectionalPad-20 dBPerformanceFrequency Range20 Hz to 20 kHz Maximum SPL141 dB SPLImpedance200 OhmsLoad Impedance2 KilohmsSensitivity-28 dBDynamic Range114 dBSignal-to-Noise Ratio78 dB A-WeightedEquivalent Noise Level16 dB A-Weighted28 dB ITU-R 468THD< 1% CMRR60 dBConnectivityOutput Connectors (Analog)1 x XLR 3-PinPowerOperating Voltage48 V ¡À 4 VOperating Current Consumption2.8 mAPhysicalOperating Temperature-40 to 113¡ãF / -40 to 45¡ãCOperating Humidity90%Dimensions?: 0.75 x L: 6.46" / ?: 19 x L: 164?mmWeight5.64?oz / 160?gPackaging InfoPackage Weight0.85 lbBox Dimensions (LxWxH)10.8 x 6.1 x 2.8"S
