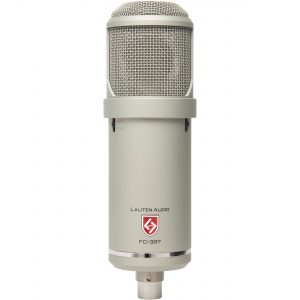

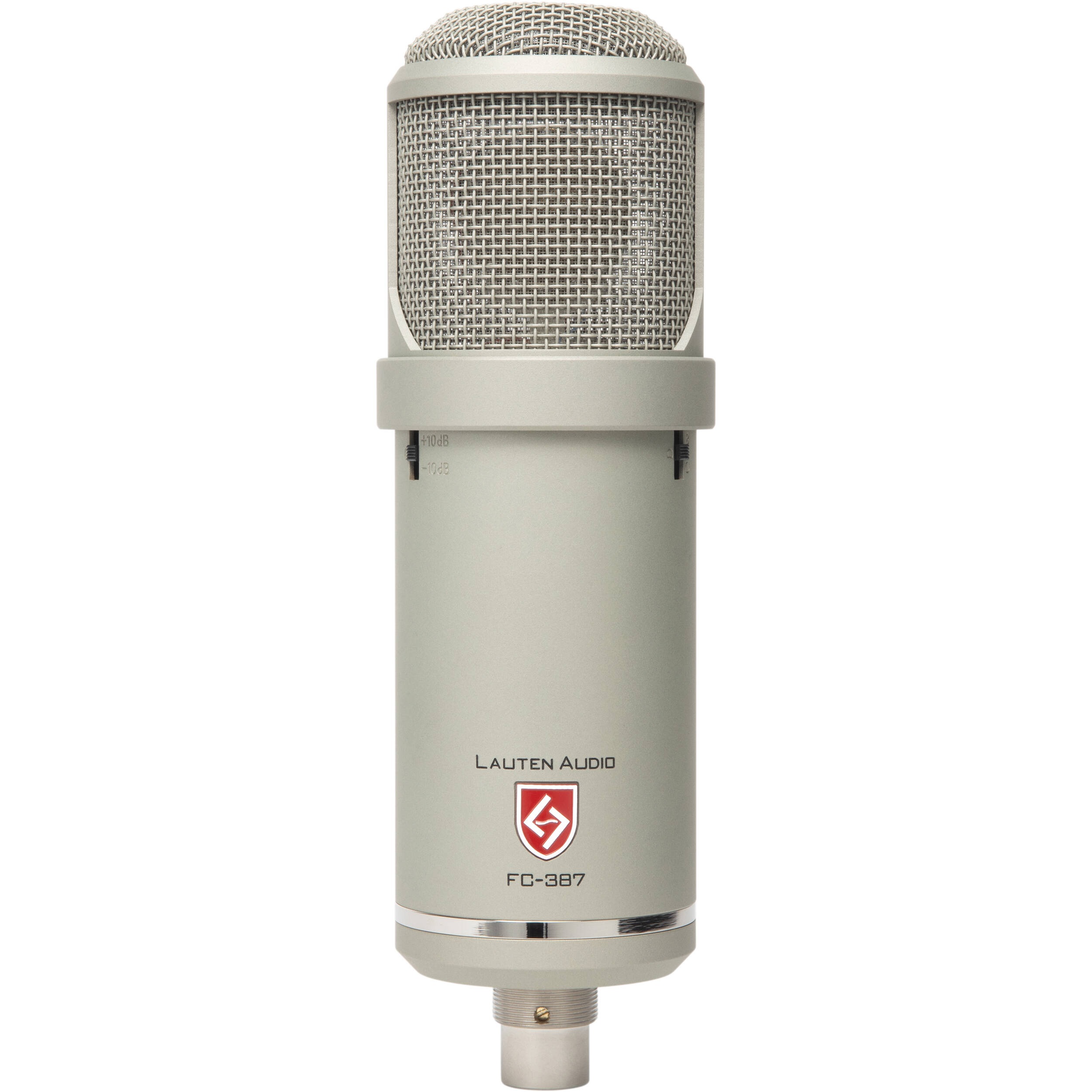

Created with help from award-winning engineer and producer Fab Dupont, the Lauten Audio Atlantis FC-387 is a large-diaphragm, multipattern condenser microphone boasting the sonic flexibility of three different mics as well as selectable polar patterns and adjustable gain, placing high on the list of impressive mics for capturing vocals and instruments with the perfect tone. Simply flip the Voicing switch to toggle between carefully designed frequency responses, which let you go from bright to balanced to warm in an instant.
The Atlantis FC-387 features Class-A circuitry comprising a low-noise FET circuit and a custom-wound output transformer, and an extra-large capsule with two 31.25mm diaphragms that enable the choice of three polar patterns¡ªomnidirectional, cardioid, and figure-8. The onboard gain control provides +10 dB of boost, flat, or -10 dB settings for adjusting the relationship between microphone and preamplifier as well as accommodating quiet or loud sources. The Atlantis FC-387 comes with a shockmount and a wooden storage box.Three Mics in OneThe Atlantis is three distinct FET microphones packed into a single, hand-finished brass enclosure. Designed in close collaboration with renowned producer and mix engineer Fab Dupont, the Atlantis provides a dynamic and versatile wealth of sound that makes picking the right microphone for even the most troublesome sources as easy as flipping a switch. From tight and bright to smoky vintage velvet, the Atlantis offers an analog abundance of ready-for-mix sounds in a single microphone.3-Way Voicing SwitchChoose one of three tone settings to get the perfect sound for any source.Forward: Bold and present, but never harshNeutral: Smooth and earthy with a natural balancing of sibilant soundsGentle: Dark and sultry with a vintage feel, ideal for taming bright or abrasive soundsOne-of-a-Kind CapsuleA microphone’s capsule captures music’s most meaningful moments and converts them into electricity with relentlessly unforgiving results. Lauten’s precision-crafted 38mm capsule is one of the largest in the world, a one-of-a-kind “super-transducer” designed in Silicon Valley and tuned by hand to capture the spirit, soul, and wonder of a performance with unprecedented authenticity and realism. It utilizes dual 31.25mm diaphragms made of ultra-thin plastic material with a layer of gold on one side.Class-A ElectronicsThe Atlantis signal path is populated with high-resolution, low-distortion polypropylene capacitors, a US-made low-noise FET, and a custom-wound output transformer that puts the finishing touches on every sound that passes through its copper windings. The result is a smooth, mix-ready sound brimming with life.Selectable Polar PatternsDetermine what the Atlantis hears by selecting on of its three polar patterns.Cardioid: Captures sound primarily from the front of the microphone, most commonly used for recording vocals with minimal room reflectionsOmnidirectional: Captures sound equally from all sides of the microphone for authentic, “in-the-room” instrument and vocal recordingsFigure-8: Captures sound equally from the front and back of the microphone for a more open, natural recording3-Stage Gain ControlUse the onboard gain switch to achieve the optimal recording level, no matter what preamp the mic is paired with.+10 dB: Ideal for use with quiet sound sources and consumer-grade audio interfaces where more character from the microphone itself is desired0 dB: Sets the output of the Atlantis to its default output gain selection-10 dB: Useful when more color and saturation from a high-end preamp is desired, or when paired with very loud soundsFeatures at a GlanceVoicing switch for three distinct timbresCardioid, omni, and figure-8 polar patterns3-stage gain controlLow-noise FET circuitryHigh-resolution capacitorsCustom-wound output transformerXLR 3-pin output connector48V phantom poweredIncludes shockmount and wooden boxWhatsApp:+8615989288128 , UNCUCO Radio / TV Studio Equipment. , 639266328315
Lauten Audio FC-387 SpecsMicrophonePrimary ApplicationsStudio Recording, BroadcastForm FactorLarge Diaphragm Mic / Stand/Boom MountIntended Sound SourcesVocals, InstrumentSound FieldMonoOperating PrinciplePressure GradientCapsuleCondenserDiaphragm1.23″ / 31.25?mmPolar PatternCardioid, Figure-8, OmnidirectionalPattern SelectionSwitched (Adjustable on Mic)OrientationSide AddressCircuitrySolid-State (FET)PadNoneHigh-Pass FilterNoneGain Adjustment-10 to +10 dBIndicatorsNoneOn-Board ControlsGain/Sensitivity, Pad, Polar PatternWindscreenNonePerformanceFrequency Range20 Hz to 20 kHz Maximum SPL130 dB SPL (1 kHz, .5% THD)Impedance200 OhmsSensitivity-36 dBV/Pa at 1 kHzDynamic Range120 dBEquivalent Noise Level12 dB A-WeightedConnectivityOutput Connectors (Analog)1 x XLR 3-Pin Male (on Mic)Headphone ConnectorNonePowerBus PowerNoneOperating Voltage48 V (Phantom Power)PhysicalColorGrayMountingShockmount (Included)Included CaseHard CaseIncluded FiltersNonePackaging InfoPackage Weight7.15 lbBox Dimensions (LxWxH)14 x 12.1 x 6.4″S
