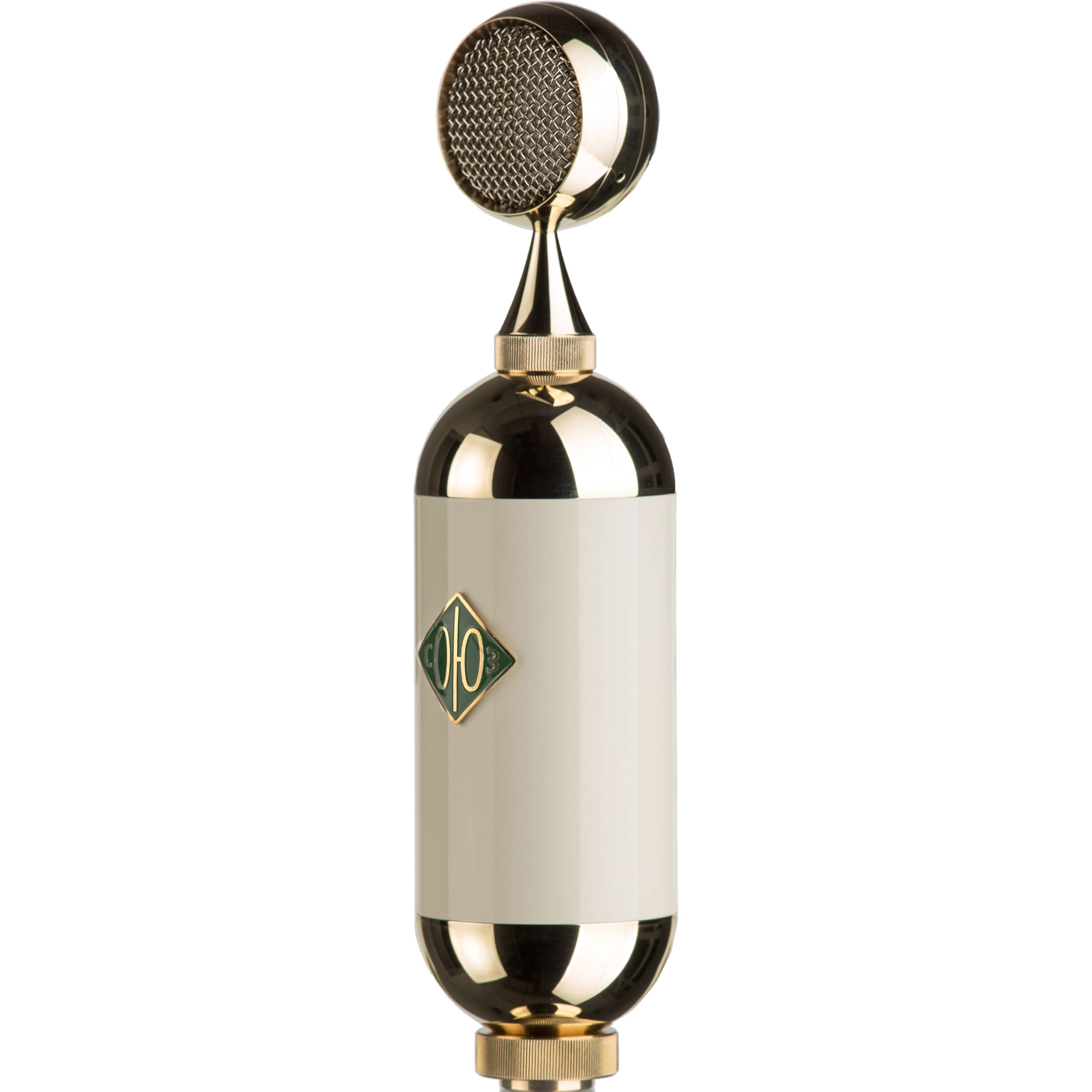

The Soyuz SU 019 FET MicrophoneWith a 1950s-style craftsmanship, Soyuz Microphones delivers the hand-crafted, vintage-style SU-019 Premium FET Condenser Mic. It is manufactured in-house using point-to-point soldering plus wire-wrap technology, giving you a transparent low-noise sound.
Featuring a gold-sputtered, hand-tuned, 1″ inch diaphragm with a cardioid polar pattern, the SU-019 is a valuable tool for recording anything from vocals to orchestral masterpieces. Soyuz uses a FET with a K67-like diaphragm along with its proprietary toroidal transformer, giving you a transparent, low-noise signal that is capable of withstanding SPL levels up to 140 dB. Optional omnidirectional and figure-8 capsules are available and are easily swapped. The SU-019 has stacked polycarbonate discs with metal pins for a robust design, and ships with a wooden box and custom shockmount.CapsuleK67-style capsuleCapsules made in-house by handVintage gold-sputtered machine used for capsule constructionTransformerToroidal transformers?Low harmonic distortion for transparencyInternal StructureStacked-disc designPolycarbonate DiscsUses polycarbonate discs with metal pins instead of printed circuit boardsProduced in-houseHigh resistance prevents signal leakage and minimizes noise?Point-to-Point and Wire WrapPoint-to-point wiringWire wrap and solder technology gives a clean signal pathRobust designSPLHandles SPL as high as 140 dBWhatsApp:+8615989288128 , UNCUCO Radio / TV Studio Equipment. , 868902000210
Soyuz Microphones SU-019 SpecsMicrophoneSound FieldMonoOperating PrinciplePressure GradientCapsuleCondenserDiaphragm1.3″ / 33.02?mmPolar PatternCardioidCircuitrySolid-StatePadNoneHigh-Pass FilterNonePerformanceFrequency Range20 Hz to 20 kHz Maximum SPL140 dB SPLImpedance200 OhmsSensitivity15 mV/PaEquivalent Noise Level18 dB A-WeightedConnectivityOutput Connectors (Analog)1 x XLR 3-PinPowerOperating Voltage48 VPhysicalDimensions?: 2.17 x L: 10.47″ / ?: 55 x L: 266?mmWeight2.05?lb / 930?gPackaging InfoPackage Weight6.2 lbBox Dimensions (LxWxH)14.2 x 13.5 x 5.9″S
