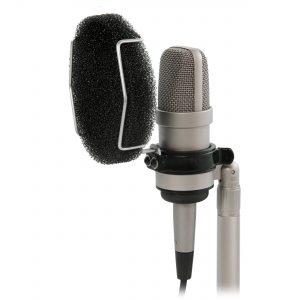

The satin nickel M 930 Studio Condenser Microphone from Microtech Gefell is a cardioid microphone with 48V phantom power that combines a large-diaphragm capsule with semi-conductor circuit technology. It can be used to capture audio in radio and sound studios as well as for home-recording applications for singers, speakers, keyboards, strings, wind instruments, and more.The condenser microphone has a balanced frequency response with a slight elevation from 7 to 11 kHz, and a high cancellation for backward and lateral sound. Built with an extended modulation range, the circuit design allows for detailed transmission of low sound levels, as well as distortion-free imaging of high sound pressures. The compact microphone housing is mounted with the capsule to dampen body sound and impacts.Furthermore, the microphone is equipped with a 3-pin XLR connector, and the power is supplied with standard 48V phantom power. The M 930 Studio Condenser Microphone includes a pop-screen filter, an elastic suspension mount, and a wood case for storage.
Microtech Gefell M 930 SpecsMicrophoneForm FactorStand/Boom MountSound FieldMonoOperating PrinciplePressure GradientCapsule1 x CondenserPolar PatternCardioidOrientationSide AddressCircuitrySolid-StatePadNoneHigh-Pass FilterNoneTone AdjustmentNoneIndicatorsNoneOn-Board ControlsNoneWindscreenFoam (Included)PerformanceFrequency Range20 Hz to 20 kHz Maximum SPL142 dB SPL (.5% THD)Off-Axis Rejection>2 dB at 60¡ã13 dB at 120¡ã25 dB at 180¡ãImpedance100 OhmsSensitivity21 mV/Pa at 1 kHzDynamic Range135 dBSignal-to-Noise Ratio87 dB A-Weighted (1 kHz)81 dB CCIR (1 kHz)Equivalent Noise Level7 dB A-Weighted13 dB CCIRConnectivityOutput Connectors (Analog)1 x XLR 3-Pin Male (on Mic)PowerOperating Voltage48 V (Phantom Power)Operating Current Consumption3.6 mAPhysicalMountingShockmount (Included)Dimensions?: 1.77 x L: 4.65″ / ?: 45 x L: 118?mmWeight7.41?oz / 210?gPackaging InfoPackage Weight2.9 lbBox Dimensions (LxWxH)10.9 x 8.1 x 5.4″S
