Home FM/TV Broadcast FM Transmitter 20KW FM Transmitter (Hot-plugin)
10KW FM Transmitter
10KW FM Transmitter (Hot-plugin) $36,000.00
Back to products
50W 100W 200W 300W Analog TV Transmitter
50W/100W Analog TV Transmitter $2,800.00
20KW FM Transmitter
Click to enlarge

20KW FM Transmitter (Hot-plugin)

$54,000.00

Add to wishlist
Share:
  • Description
  • Additional information
  • Shipping & Payment
Description

This is an excellent 20KW FM stereo transmitter for professional radio stations. This 20KW FM transmitter is Hot-Plug design, high reliability and high Performance. It consists of center control unit (CCU), double exciters, 8pcs hot-plug 3KW FM amplifier modules, 8-way combiner, a perfect LPF and 8pcs hot-plug 5KVA switched power supply modules. This can be repaired without turn off entire transmitter.

FEATURES

● Fully Large Power: 8pcs 3KW hot-plug RF Amplifier modules combined high efficiently; Maximum Output Power is 22KW. It uses the new high-efficiency LDMOS Transistors, the full RF output power can reach 70%.

● Fully Power Supply: 8pcs 5KVA switched power supply modules are working in parallel. It can provide large redundant power capacity.

● High-performance Low Pass Filter which can minimize unwanted emission.

● Output Power Stable: Total output power is extremely stable by AGC (Automatic Gain Control). Ensure the output power would not change with the boot time and ambient temperature, power stability is less than 10W.

● Dual-Exciter: Two exciters (DSP+DDS) with automatically changeover switcher, increase entire transmitter stability.

● Analog and Digital (AES/EBU) audio signal input directly; Hearing similar to CD.

● 8-inch Color LCD with touch panel displays all the parameters in real time.

● Intelligent protection functions by centre control module, like Over Forward Power, Over SWR, Over Temperature, Over Voltage, Over Current. It can adjust output power intelligent, keep the maximum safe output power and keep fault not expanding.

● Best dustproof performance: All inlets are made of high-quality filters which can filter out dust in the air to keep stability of transmitter.

● Best lightning protection: high quality lightning protection SPD fromGermanyfor the whole power supply.

● Real Hot-Plug structure: the Amplifier modules and Power Supply modules can be repairing at non-stop condition in any case.

● Timing automatically adjusts the output power: After setting, the transmitter can automatically adjust the output power at different times of the day, convenient for economical radio broadcasting.

● Advanced Remote Telemetry Interface: RS232/RS485 or TCP/IP Internet Communication interface is ready for remote control system which can read all detail parameters from transmitter.

Technical Specifications:

1. Frequency Range 87.0MHz~108.0MHz

Setting Step 10KHz

2. Output Power 0~20000W

3. Output power deviation <± 10%
4. Output power stability <± 3%

5. Output Load Impedance 50Ω

6. RF Output Interface 3-1/8″ Flange

7. SFDR < -70dB
8. High Harmonic < -75dB
9. Residual Amplitude Modulation < -50dB

10. Carrier Frequency Precision ±200Hz

11. Analog Audio Input -12dBm~+8dBm

12. Audio Input Level Gain -15dB~+15dB, step 0.1dB

13. Audio Input Impedance 600Ω, Balance, XLR

14. AES / EBU input impedance 110Ω, Balance, XLR
15. AES / EBU input level 0.2 ~ 10Vpp
16. AES / EBU sample rate 30kHz ~ 96kHz

17. RDS Input Unbalance (optional) BNC connector

18. Pre-emphasis 0μS, 50μS, 75μS (optional)

19. Audio Response ±0.1dB (30Hz~15000Hz)

20. LR channel level difference <0.1dB (100% modulation)
21. Stereo Separation ≥50dB 30Hz ~ 15000Hz
22. Stereo S/N ratio ≥70dB 1KHz, 100% modulation

23. Distortion <0.1% 30Hz~15000Hz

24. Cooling mode Forced Convection

25. Temperature Range: -5℃~+45℃

26. Size 19-inch standard

850mm×1970mm×1200mm

27. Weight 580KG

Additional information
Weight 580 kg
Shipping & Payment

Payment Method

We accept online payments via paypal, credit and debit cards. We also accept western union, money gram and bank transfer.

To order goods online and pay them via paypal, credit and debit cards, simply add your selected items to your basket, and proceed to the checkout, where you will be guided through the payment process.

Payment via PayPal:

1. You have your PayPal account, then choose the PayPal to complete the payment directly

2. If you want to use the PayPal payment, but you don’t have one PayPal account, please register one first.

Note: Choose the PayPal payment, you can choose your country currency, we accept all the currency.

Payment via Debit and Credit Card:

1. You click MasterCard, Visa Credit Card, American Express, Discover payment directly, you will be redirected to the PayPal website, then choose the payment method again, and fill in your card information to complete the payment.

2. You click the PayPal&Credit, you will be redirected to the PayPal website, the one is PayPal payment, the other one is Pay with Debit or Credit Card payment. Choose one to complete the payment.

Note: Your credit card will be charged upon placement of your order.

Payments via Western Union, Money Gram and Bank Transfer

If you would like to place your order, please contact us with the following information:

E-mail: service@uncuco.com

WhatsApp: +8615989288128

Your billing and delivery address.
Your full name, phone number and email address.
The list of items you'd like to purchase.
We will get back to you with a proforma invoice, and the directions for the final step to complete the direct deposit.

The payment needs to be verified by our in-house accounts department and goods will only be dispatched on their verification. Only once the funds have reflected in our bank account, will the goods be allowed to leave the store.
Please note that bank transfer transactions can take up to 4 business days to clear into our account. We will process your order as soon as your payment has cleared. To ensure a speedy turn around time, please notify us once you have made the deposit.

We offer cardholders the highest level of security in online shopping, irrespective of the type of card (credit or debit). All debit or credit card payments are processed via Activa System’s Secure Payment Gateway. All payment card information is entered exclusively on the bank’s 3D secure pages. We as the merchant do not store, have access to or sight of the payments card information. Should you select to pay with a payment card, you will therefore be redirected to secure pages administered by the Activa processing centre and a bank with which we have reached a card acceptance arrangement.

Verified by Visa & Mastercard

Verified by Visa & Mastercard
The Verified by Visa and MasterCard SecureCode trademarks displayed above allow each online purchase made with your payment card to receive additional protection via 3D Secure security protocols. 3D Secure is a unique service offered by MasterCard and Visa International that uses a One Time Pin (OTP) to protect a cardholder against unauthorized use of their card. Once activated, your card number cannot be used for online purchases at participating merchants without your One Time PIN (OTP). The OTP is sent to your cell phone during payment as the final step to complete the transaction.



SHIPPING AND DELIVERY

Shipping prices will be calculated at check-out, based on the weight of the goods, the country to which we are dispatching, and the shipping service you choose. If you place the order offline by email or phone, we will send you a proforma invoice including the shipping prices.

When will I receive my order?

The likely delivery timescale for orders will depend on the availability of the items you order, the delivery method you choose (where applicable) and the shipping destination country.

Delivery times can be calculated based on formula: Time to stock + 7days~15days ( The time shipping company needs deliver the products to address in your country)

Time to stock is the number of days we need to prepare your order for shipment or how long manufacturer or supplier needs to deliver the product to our warehouse.

Delivery tracking

We use DHL or Fedex or UPS or EMS express service for our deliveries. The tracking number will be sent to you by email as soon as we will ship the order. Please note that no information will be available for the tracking number until the shipping company has actually picked up the package. Please allow up to one business day for tracking information to become available. All deliveries require a signature.

Please note

We are only able to dispatch goods once payment has been received.
All orders are subject to approval by our verification department. We will notify you by phone or email should your order be delayed.
If, for any reason, we cannot supply a product you have ordered, we will contact you via email or phone and place your product/s on back-order once you have agreed you would like to wait. If you choose to put your order on back-order, we will provide you with personalized weekly updates and will notify you once your order has shipped. If one or more of your items is in stock and you are waiting on other item/s, you can have your order part shipped. A sales representative will keep you updated on the remaining portion of your order, and can provide tracking information for both shipments.

Reviews

There are no reviews yet.

Be the first to review “20KW FM Transmitter (Hot-plugin)” Cancel reply

You must be logged in to post a review.

Related products

1500W FM Transmitter
1500W FM Transmitter
Add to cart
Quick view
Add to wishlist

1500W FM Transmitter

$2,890.00
1KW FM Transmitter
1KW FM Transmitter
Add to cart
Quick view
Add to wishlist

1KW FM Transmitter

$4,300.00

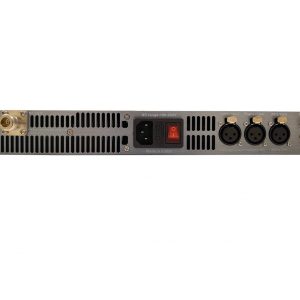

150W FM transmitter
Add to cart
Quick view
Add to wishlist

150W FM Transmitter

$795.00

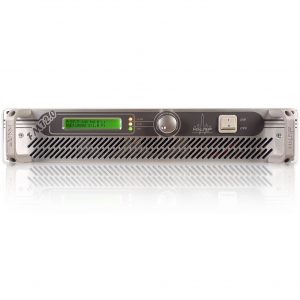

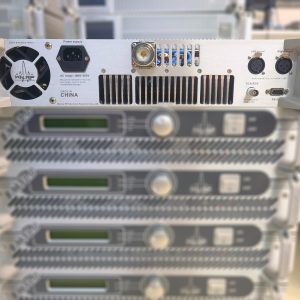

600W FM Transmitter
