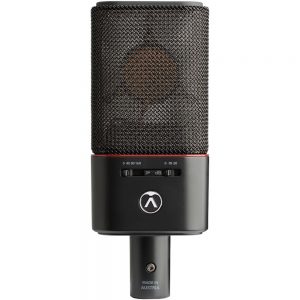

Large-Diaphragm Studio Condenser Microphones from Austrian AudioRead MoreOC818 & OC18. Made in Vienna Again! Handmade Capsules and Mics Made in Vienna.Designed by a team of former AKG personnel, the Austrian Audio OC18 Studio Set is a large-diaphragm studio condenser microphone offering detailed audio capture for vocalists, voiceover artists, musicians, and producers in personal and commercial recording facilities. The handmade 1″ ceramic capsule features a gold-plated polymer membrane and a cardioid polar pattern, which yields reliable on-axis directivity with enhanced off-axis rejection. Front-panel switches are provided for easy access to the pad and roll-off settings.
Set the pad to -10 or -20 dB to avoid distortion when miking loud sources such as drums or guitar cabinets. Activate the high-pass filter at 40, 80, or 160 Hz for attenuation of low-frequency problems including rumble and proximity effect. The OC18’s housing is constructed of zinc-aluminum alloy for strength and durability. The OC18 Studio Set includes a vibration-reducing shockmount, a traditional mic clip, a windscreen for mitigating noise from breaths and blasts of air, and a protective carry case. Being 48 VDC phantom powered, the OC18 does not require batteries or an external power supply.Handcrafted Condenser CapsuleHandcrafted CKR6 ceramic capsule like the CKR12 capsule, but with a single diaphragmPrecision MatchingMatched within 1 dB of every other OC18 or OC818 to allow the creation of stereo pairs (additional microphones available separately)Studio Sound QualityHigh sensitivity and low self-noise means it can handle everything from a whisper to extreme SPLs without distortionOnboard SettingsTwo-stage pad (-10 or -20 dB) to prevent distortion and high-pass filter with three positions (40, 80, or 160 Hz) for reduction of low-frequency rumble and excessive bassFeatures at a GlanceSingle-diaphragm CKR6 handcrafted ceramic capsuleDebuts Austrian Audio’s Open Acoustics TechnologyCardioid polar patternBalanced 3-pin XLR output connector48V phantom poweredIncludes shockmount, mic clip, windscreen, and protective carry caseEngineered and manufactured in AustriaWhatsApp:+8615989288128 , UNCUCO Radio / TV Studio Equipment. , 810019100048
Austrian Audio OC18 SpecsMicrophonePrimary ApplicationsStudio RecordingForm FactorLarge Diaphragm Mic / Stand/Boom MountIntended Sound SourcesVocals, Speech/Voice Over, InstrumentSound FieldMonoOperating PrinciplePressure GradientCapsuleCondenserDiaphragm1″ / 25.40?mmPolar PatternCardioidOrientationSide AddressCircuitrySolid-StatePad-10 dB-20 dBHigh-Pass Filter40 Hz, 12 dB/Octave 80 Hz, 12 dB/Octave 160 Hz, 6 dB/Octave Tone AdjustmentNoneGain AdjustmentNoneIndicatorsNoneOn-Board ControlsHigh-Pass Filter, PadWindscreenFoam (Included)PerformanceFrequency Range20 Hz to 20 kHz Maximum SPL148 dB SPLImpedance275 OhmsLoad Impedance> 1000 OhmsSensitivity13 mV/PaEquivalent Noise Level9 dB SPL A-WeightedConnectivityOutput Connectors (Analog)1 x XLR 3-Pin Male (on Mic)Headphone ConnectorNonePowerBus PowerNoneOperating Voltage48 V ¡À 4 V (Phantom Power)Operating Current Consumption2.2 mAPhysicalColorBlackMountingMic Clip/Stand Adapter, Shockmount (Included)Included CaseHard CaseIncluded FiltersNoneConstruction MaterialZinc AlloyOperating Temperature32 to 87¡ãF / 0 to 55¡ãCStorage Temperature-13 to 92¡ãF / -25 to 60¡ãCDimensionsH: 1.4 x W: 2.5 x L: 6.2″ / H: 3.5 x W: 6.3 x L: 15.7?cmWeight12.52?oz / 355?gPackaging InfoPackage Weight4.5 lbBox Dimensions (LxWxH)34 x 10.5 x 4.5″S
