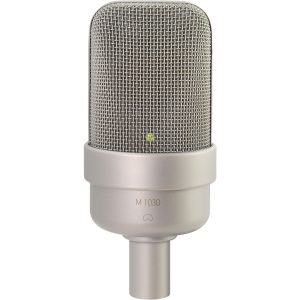

The Microtech Gefell M 1030 is a large-diaphragm, solid-state condenser microphone offering premium performance in a space-saving design. With ultralow self-noise, wide dynamic range, and extremely high SPL handling, the M 1030 is well suited for pristine voice recording and instrument miking in studios and radio stations.
The compact housing, which contains current semiconductor circuit technology including a transistor amplifier, features a standard 3-pin XLR output connector and can be mounted in the supplied mic holder or the EA 92 elastic suspension (available separately). The large-diaphragm capsule utilizes a PE diaphragm and a cardioid polar pattern, making it both sensitive and directional. Since the M 1030 operates on 48V phantom power from your mic preamp, it requires no external power supply unit.Well suited for vocals, speaker stations, radio plays, and as a support microphone for recording guitars, keyboard, percussion, wind instruments, and string instrumentsCombines modern large-diaphragm capsule technology with the latest semiconductor circuit technologyOptimization of the size of the microphone housing fulfills the expectations of a large-diaphragm microphone in the studio areaCardioid condenser capsule with PE membraneTransistor amplifierUltralow self-noise of 7 dBAHandles extremely loud sources (up to 142 dB SPL)Wide 135 dB dynamic rangeOperates on 48V phantom powerStandard 3-pin XLR output connectorIncludes mic holder and wooden caseEA 92 elastic suspension available separatelyNickel matte finish
Microtech Gefell M1030 SpecsMicrophoneForm FactorStand/Boom MountSound FieldMonoOperating PrinciplePressure GradientCapsule1 x CondenserPolar PatternCardioidOrientationSide AddressCircuitrySolid-StatePadNoneHigh-Pass FilterNoneTone AdjustmentNoneIndicatorsNoneOn-Board ControlsNoneWindscreenNonePerformanceFrequency Range20 Hz to 20 kHz Maximum SPL142 dB SPL (.5% THD)Off-Axis Rejection5 dB at 60¡ã>10 dB at 120¡ã25 dB at 180¡ãImpedance100 OhmsSensitivity21 mV/Pa at 1 kHzOutput Level18 dBu (Max)Dynamic Range135 dBSignal-to-Noise Ratio87 dB A-Weighted (1 kHz)81 dB CCIR (1 kHz)Equivalent Noise Level7 dB A-Weighted13 dB CCIRConnectivityOutput Connectors (Analog)1 x XLR 3-Pin Male (on Mic)Headphone ConnectorNonePowerOperating Voltage48 V (Phantom Power)Operating Current Consumption3.6 mA (Phantom Power)PhysicalColorNickelMountingMic Clip/Stand Adapter (Included)Shockmount (with Optional Hardware)Dimensions?: 2.6 x L: 5.71″ / ?: 66 x L: 145?mmWeight12.52?oz / 355?gS
